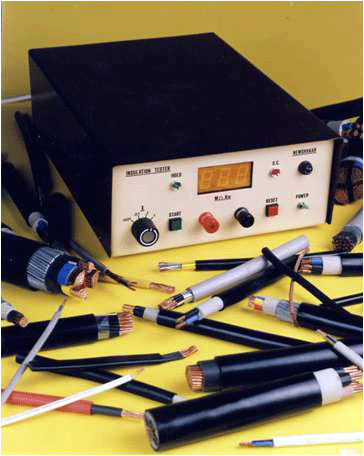

Insulation Resistance Measuring Device:
(Digital mega ohm meter.)
Designed to measure insulation resistance of a five meter sample of insulated wires & cable with P.V.C insulation up to 100 Mega.0hm.km with digital display according to IEC 607 Article 5-3.
Main Features
• In 4 ranges, up to 0.1,1,10,100 Mega.0hm.km.
• Protected against short circuit.
• Displaying when insulation resistance of the sample under test is out of range of device.
• Equipped with automatic timer for one minute (based on the standard).
|
Models TE100 and TE500
